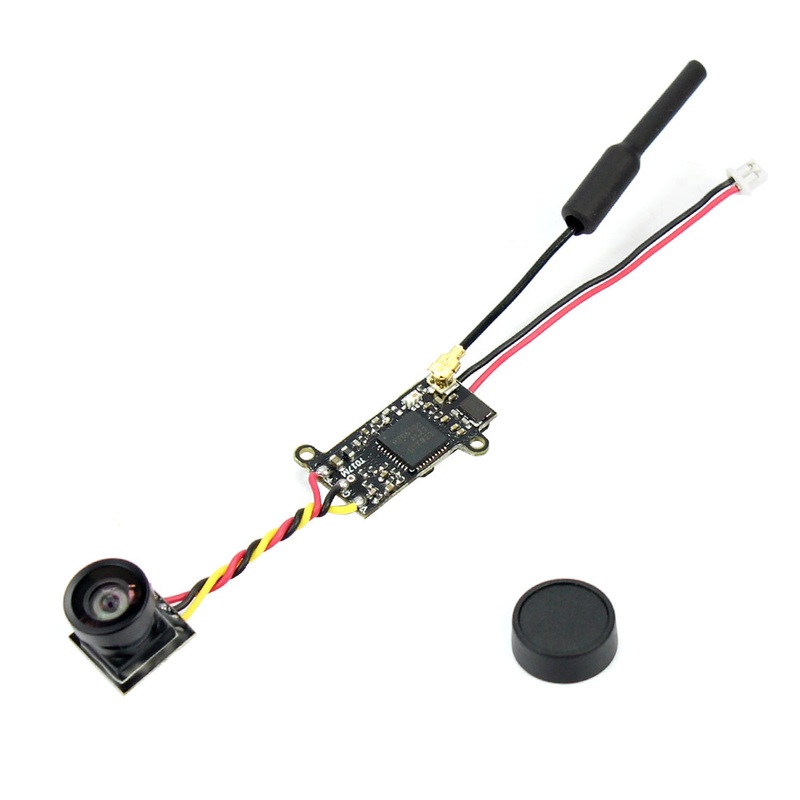

QWinOut FPV Split Camera 1/4 5inch CMOS Image Sensor 700TVL NTSC 25MW 48CH for FPV Racing Drone Quadcopter Aircraft

QWinOut FPV Split Camera 1/4 5inch CMOS Image Sensor 700TVL NTSC 25MW 48CH for FPV Racing Drone Quadcopter Aircraft

FPV split camera

Image sensor: 1/4.5 inch CMOS image sensor

Video format: NTSC

Resolution: 700 TVL

Lens:

FOV: 120 FOV, 150 DFOV



transmitter

Working voltage: 3.0V ~ 5.5V

Boost current: 220Ma ~ 400 mA @ 3.0V~5.0V

Output power: 0.1MW/25MW switchable

Output frequency: 54 7MHz ~ 5917MHz

Channel: 48



Operating temperature: – 20 C ~ 85 C

Weight: 3.3g

Size: camera = 11mm 11mm 1.6mm; video transmitter = 18mm 14mm 4mm



Channel list (48 channels)

Band CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8

Band A 5865 5845 5825 5805 5785 5765 5745 5725

Band B 5733 5752 5771 5790 5809 5828 5847 5866

Band E 5705 5685 5665 5665 5885 5905 5905 5905

Band F 5740 5760 5780 5800 5820 5840 5860 5880

Band R 5658 5695 5732 5769 5806 5843 5880 5917

Band O 5474 5492 5510 5528 5546 5564 5582 5600

*Note: There are 3 super-standard frequency points replaced by pre-frequency (E4, E7, E8)
