JMT 5.8G 800TVL FPV AIO Micro Camera 25MW 40CH Transmitter LST-S2+ FPV Camera with OSD

RM1641845738266148

JMT 5.8G 800TVL FPV AIO Micro Camera 25MW 40CH Transmitter LST-S2+ FPV Camera with OSD

Sensor: 1/4 “CMOS
Lens: M8 800TVL Lens
Angle: 150 FOV horizontal viewing angle of 170 DFOV diagonal perspective
Format: NTSC / PAL (switchable)
Power consumption: 380mA @ 3 7V
Power: 3.6-5.5V
Lens Mirror Diameter: 2.1mm IR coated FOV150 (horizontal)

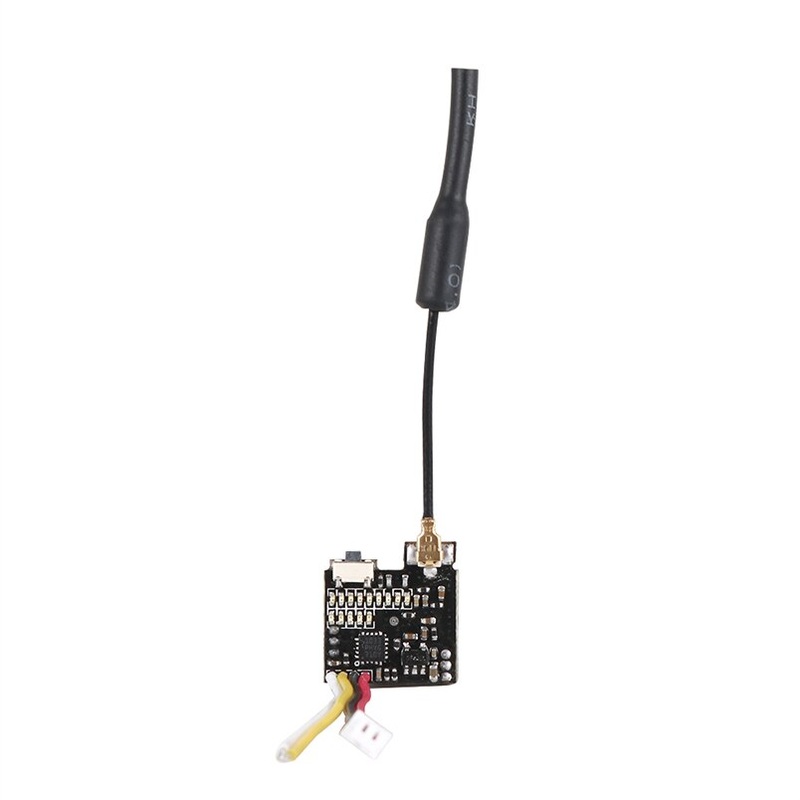

Video Transmitter

Support video format: NTSC / PAL
Output Impedance: 75 Ohm
Output signal strength: 23 ~ 24dBm
Output Power: 25mW
Wireless Channel: 40CH
Antenna: RHCP circular polarization clover leaf antenna
Operating voltage: 3.6V ~ 5.5V
Current: 100mA
Audio carrier: 6.5MHz

Button function
Short press (Apr. 1 sec or less): Change channels 1-8
Long press (More than 1.5 sec): Change bands A-B-E-F-R
Long + press (More than 3 sec): Change NTSC/PAL system
NTSC or PAL (selectable; Blue LED on= NTSC; Blue LED off=PAL)

Body

Weight: 3.6g
Size: 18x16x16mm (without antenna)

Feature:

AIO FPV camera, transmitter , antenna all 3 functions in one limit size and weight
150 FOV horizontal viewing angle of 170 DFOV diagonal perspective
Five bands 40 channels with Race band

Package Included:
1 X S2+ AIO FPV Camera
1 Xwiring harness
1 X User Manual

^{FrequencyTable}

^{FrequencyBandA}

⁵⁸⁶⁵

⁵⁸⁴⁵

⁵⁸²⁵

⁵⁸⁰⁵

⁵⁷⁸⁵

⁵⁷⁶⁵

⁵⁷⁴⁵

⁵⁷²⁵

^{FrequencyBandB}

⁵⁷³³

⁵⁷⁵²

⁵⁷¹¹

⁵⁷⁹⁰

⁵⁸⁰⁹

⁵⁸²⁸

⁵⁸⁴⁷

⁵⁸⁶⁶

^{FrequencyBandE}

⁵⁷⁰⁵

⁵⁶⁸⁵

⁵⁶⁶⁵

⁵⁶⁴⁵

⁵⁸⁸⁵

⁵⁹⁰⁵

⁵⁹²⁵

⁵⁹⁴⁵

^{FrequencyBandF}

⁵⁷⁴⁰

⁵⁷⁶⁰

⁵⁷⁸⁰

⁵⁸⁰⁰

⁵⁸²⁰

⁵⁸⁴⁰

⁵⁸⁶⁰

⁵⁸⁸⁰

^{FrequencyBand R}

⁵⁶⁵⁸

⁵⁶⁹⁵

⁵⁷³²

⁵⁷⁶⁹

⁵⁸⁰⁶

⁵⁸⁴³

⁵⁸⁸⁰

⁵⁹¹⁷
